| Lieu d'origine: | LA CHINE |
|---|---|
| Nom de marque: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Numéro de modèle: | NH3386 |
| Quantité de commande min: | 500KG |
| Prix: | negotiable |
| Détails d'emballage: | 25kg/PE sac, 875KG/PALLET, 17,500KG/20GP |
| Délai de livraison: | 10 jours ouvrables |
| Conditions de paiement: | T/T, L/C, D/P |
| Capacité d'approvisionnement: | 80,000tons/year |
| Spécifications: | Traitement de TGIC | Application: | Fabrication de revêtement de poudre pour l'usage extérieur |
|---|---|---|---|
| Avantage: | L'excellente fluidité, chauffent le resistance&anti-jaunissement | Propriété: | Stabilité mécanique exceptionnelle de property&storage |
| Rapport: | 93/7 | Condition de durcissement: | 200°C/10mins |
| Mettre en évidence: | ISO14000 Powder Coating polyesterResins,multifunctional Powder Coating polyester Resins,multifunctional clear polyester resin |
||
Smooth Flow Polyester Resin For General Industrial Powder Coating
◇ Applications:
NH3386 is saturated carboxyl polyester resin for applications of polyester/TGIC
powder coating system.
◇ Basic features:
Good flowability
Outstanding mechanical properties
Excellent of heat resistance and excellent anti-yellowing
Excellent storage stability
◇ Specifications:

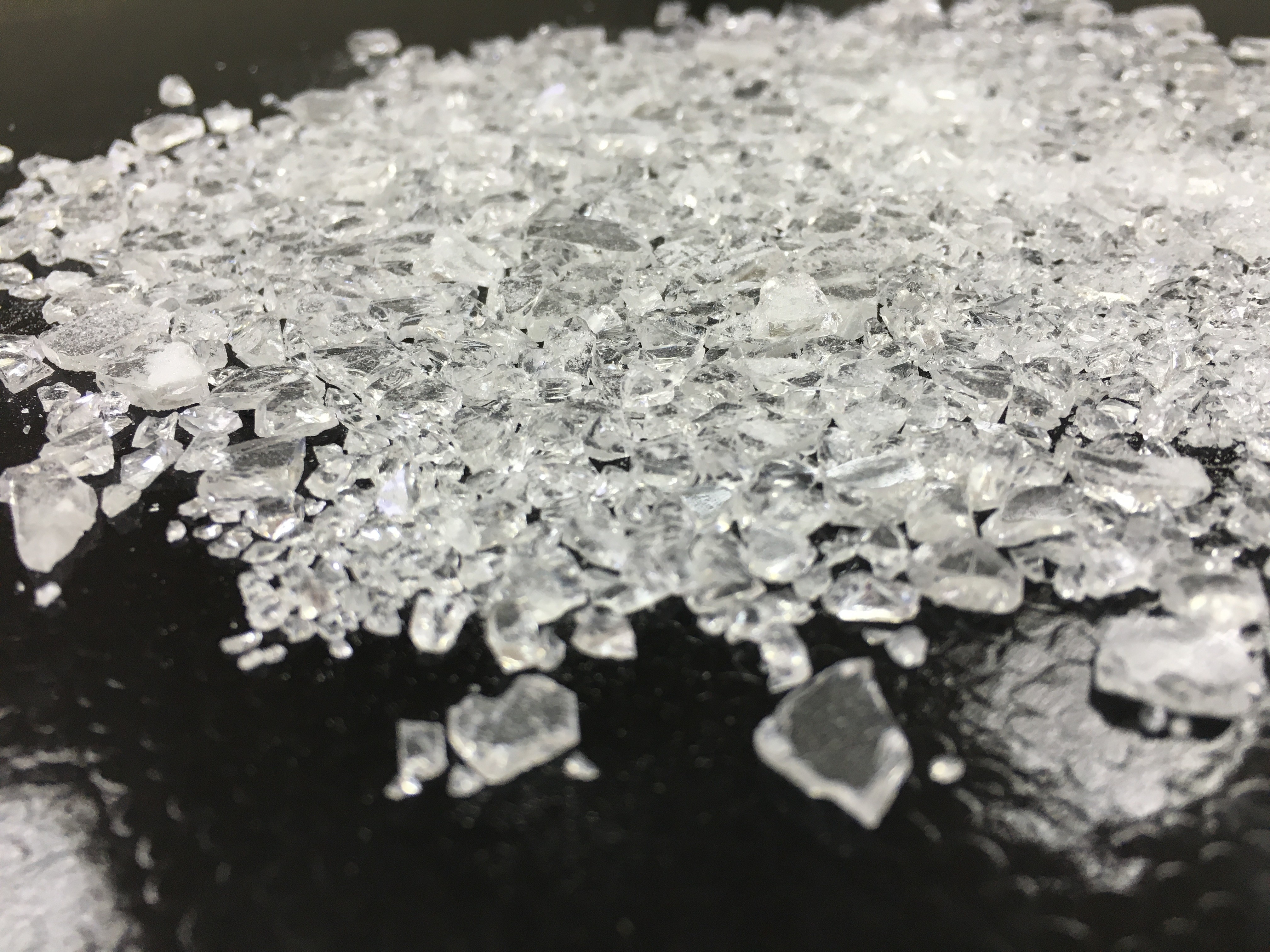

Appearance pale yellow flake
Color(50%DMF): max:2
Acid number(mgKOH/g): 31～36
Softening point(℃): 105～115
Glass transition temp.(℃): ～69
Melting viscosity(200℃, cone/plate, mPa·s): 6500±1500
Reactivity at 180℃(s, 7% TGIC): 170～250
◇ Recommend Formulation:
| NH3386 | TGIC | Filler ＆ pigment | Leveling agent | Benzion |
| 200 | 15 | 140 | 2.4 | 1.2 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～100μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 200℃×10min
◇ Film Properties:
Gel time(180℃,sec): 260~360
Flow(180℃,mm) :23~28
Gloss(60°):≥85%
Bending(φ1mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: 1H
Impact(50cm): pass
Storage test(40℃,24hr): good
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
According to industry statistics, in 2014, KINTE polyester resin output ranked third in the national industry, becoming a well-known brand and technical leader in the field of polyester resin for powder coatings in China.
The market share in Guangdong province exceeds 50%, and the sales volume ranks the top two in China, and is exported to Southeast Asia, the Middle East, Russia and other regions and countries.
